1/16″

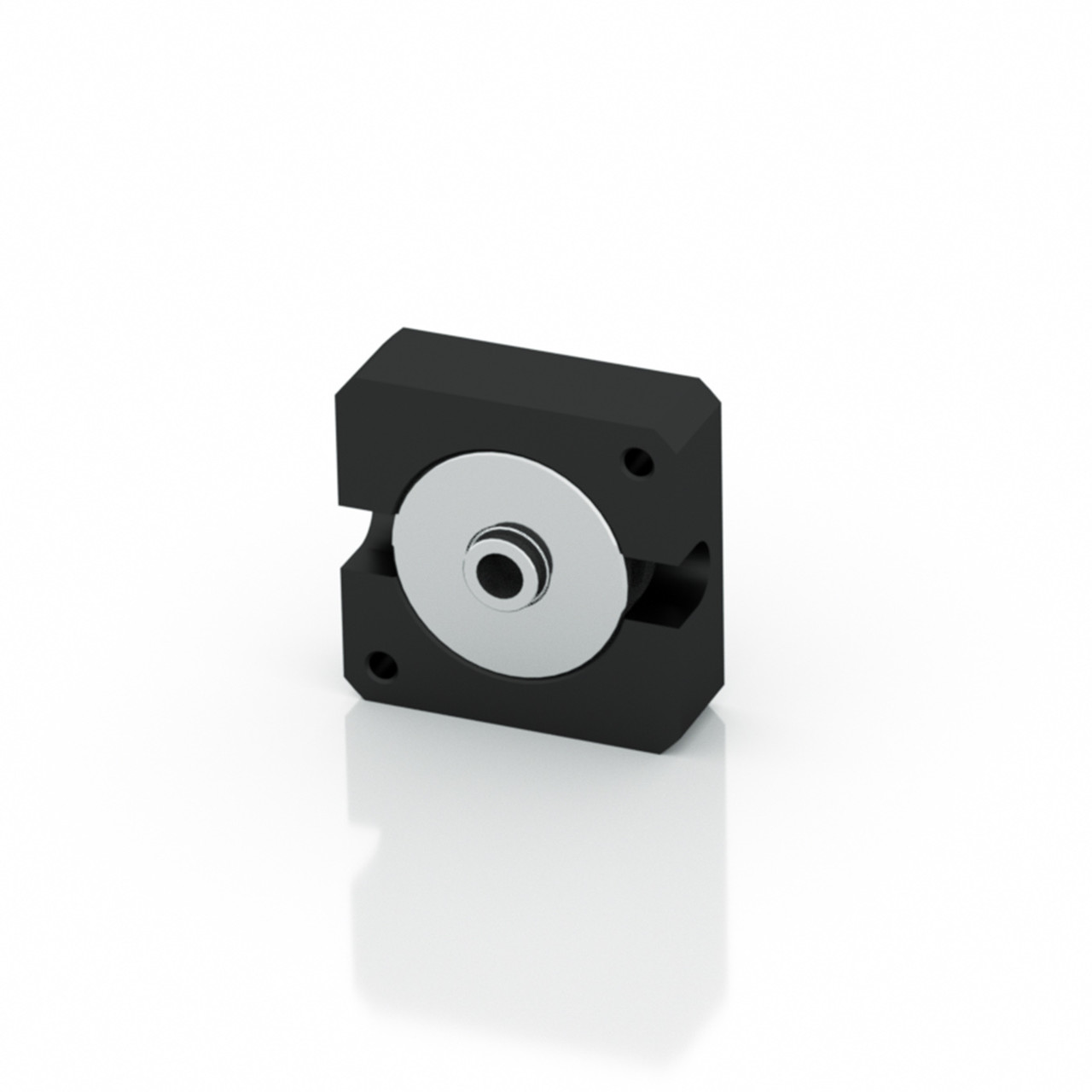

This stainless steel preparative UV flow cell is distinguished by its robust and long-life design. The flow cell can be easily dismantled allowing optical components to be cleaned and replaced. This flow cell is compatible with the following KNAUER detectors: AZURA UVD 2.1S, UVD 2.1L and Smartline 200, 2500, 2520 and 2600.
Technical Data
Flow cell
| Flow cell type | Preparative UV flow cell |
|---|---|
| Biocompatible | No |
| Fiber optics version | No |
| Capillary connection | 1/16” |
| Wetted materials | Stainless steel / quartz (SUPRASIL) / PTFE |
| Path length | 0.5 mm |
| Flow cell volume | 3 µl |
| Maximum flow rate | 250 ml/min |
| Maximum pressure | 200 bar |
