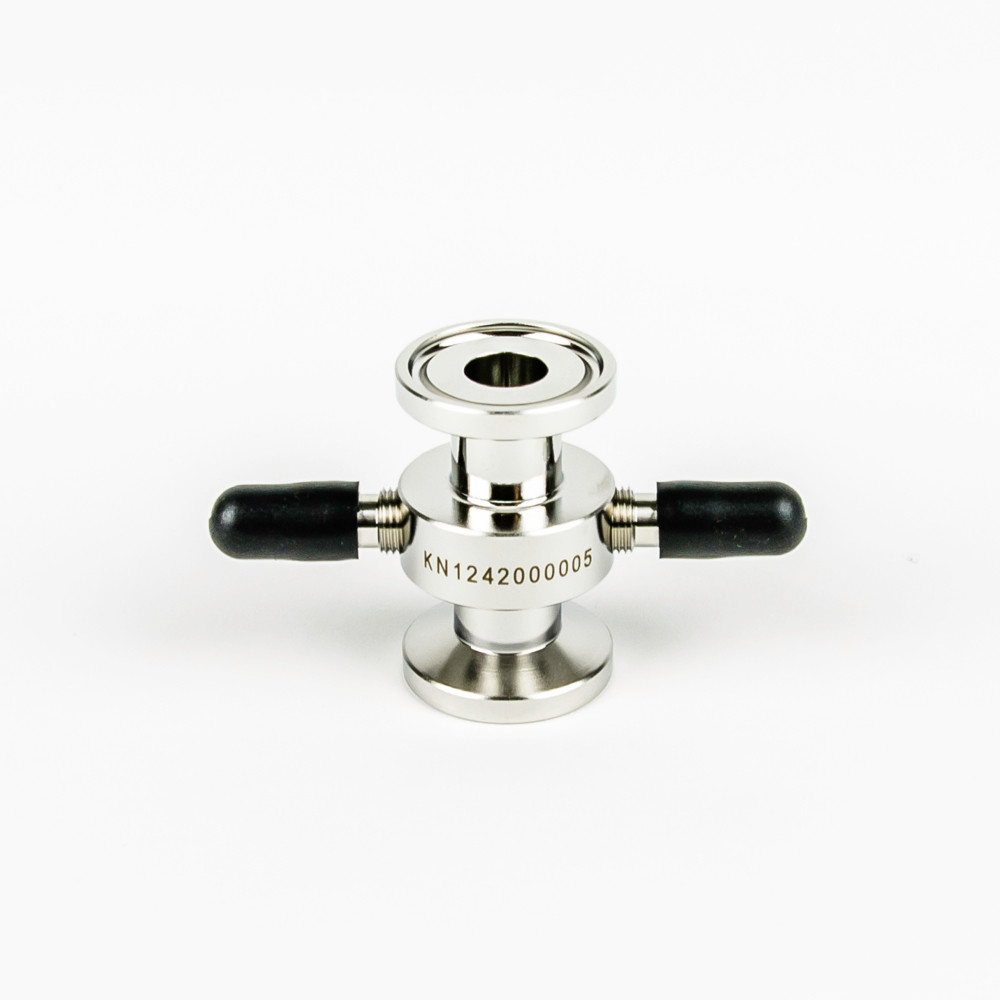

Preparative UV Flow Cell

Product No:

A4153

1/4″ SS TRI-CLAMP 10L/mn F.O.

SKU: A4153 Category:

1/4″ TRI-Clamp

This stainless steel preparative UV flow cell is optimized for high flow applications. This flow cell is compatible with the following KNAUER fiber optic version detectors: AZURA UVD 2.1S, UVD 2.1L, DAD 6.1L, DAD 2.1L, MWD 2.1L and Smartline 2520 and 2600. Delivery includes a surface roughness certificate, inspection certificate 3.1 according to EN 10204, electropolishing certificate and a FDA certificate of conformity.

Technical Data

Flow cell

Flow cell type Preparative UV flow cell
Biocompatible No
Fiber optics version Yes
Capillary connection 1/4” (TRI-Clamp)
Wetted materials Stainless steel / quartz (SUPRASIL) / PTFE
Path length 0.5 / 1.25 / 2 mm
Maximum flow rate 10000 ml/min
Maximum pressure 80 bar
