3/8″ TRI-Clamp

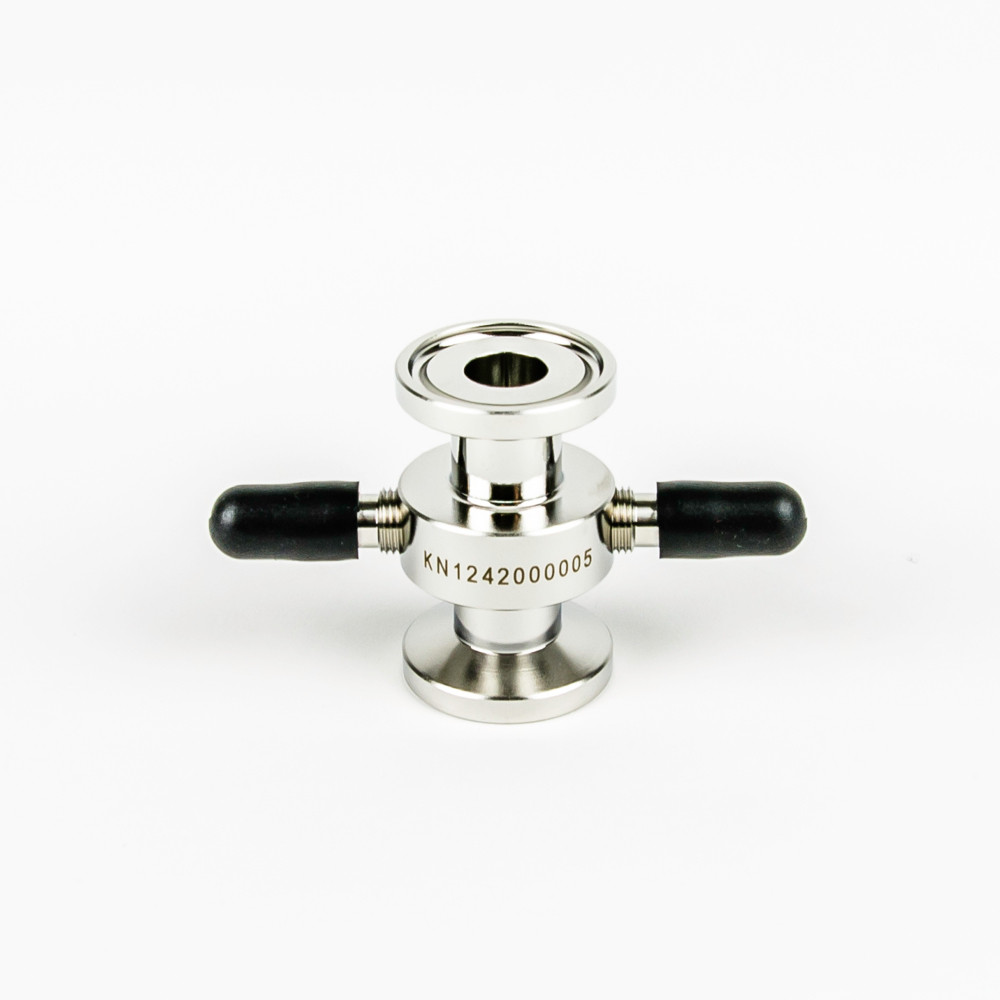

This stainless steel preparative UV flow cell is optimized for high flow applications. This flow cell is compatible with the following KNAUER fiber optic version detectors: AZURA UVD 2.1S, UVD 2.1L, DAD 6.1L, DAD 2.1L, MWD 2.1L and Smartline 2520 and 2600. Delivery includes a surface roughness certificate, inspection certificate 3.1 according to EN 10204, electropolishing certificate and a FDA certificate of conformity.
Technical Data
Flow cell
| Flow cell type | Preparative UV flow cell |
|---|---|
| Biocompatible | No |
| Fiber optics version | Yes |
| Capillary connection | 3/8” (TRI-Clamp) |
| Wetted materials | Stainless steel / quartz (SUPRASIL) / PTFE |
| Path length | 0.5 / 1.25 / 2 mm |
| Maximum flow rate | > 10000 ml/min |
| Maximum pressure | 80 bar |
