Preparative UV Flow Cell

Product No:

A4081V2

1/2″ SS 10L/mn F.O. straight tubes

SKU: A4081V2 Category:

1/4″ Fiber Optics Version

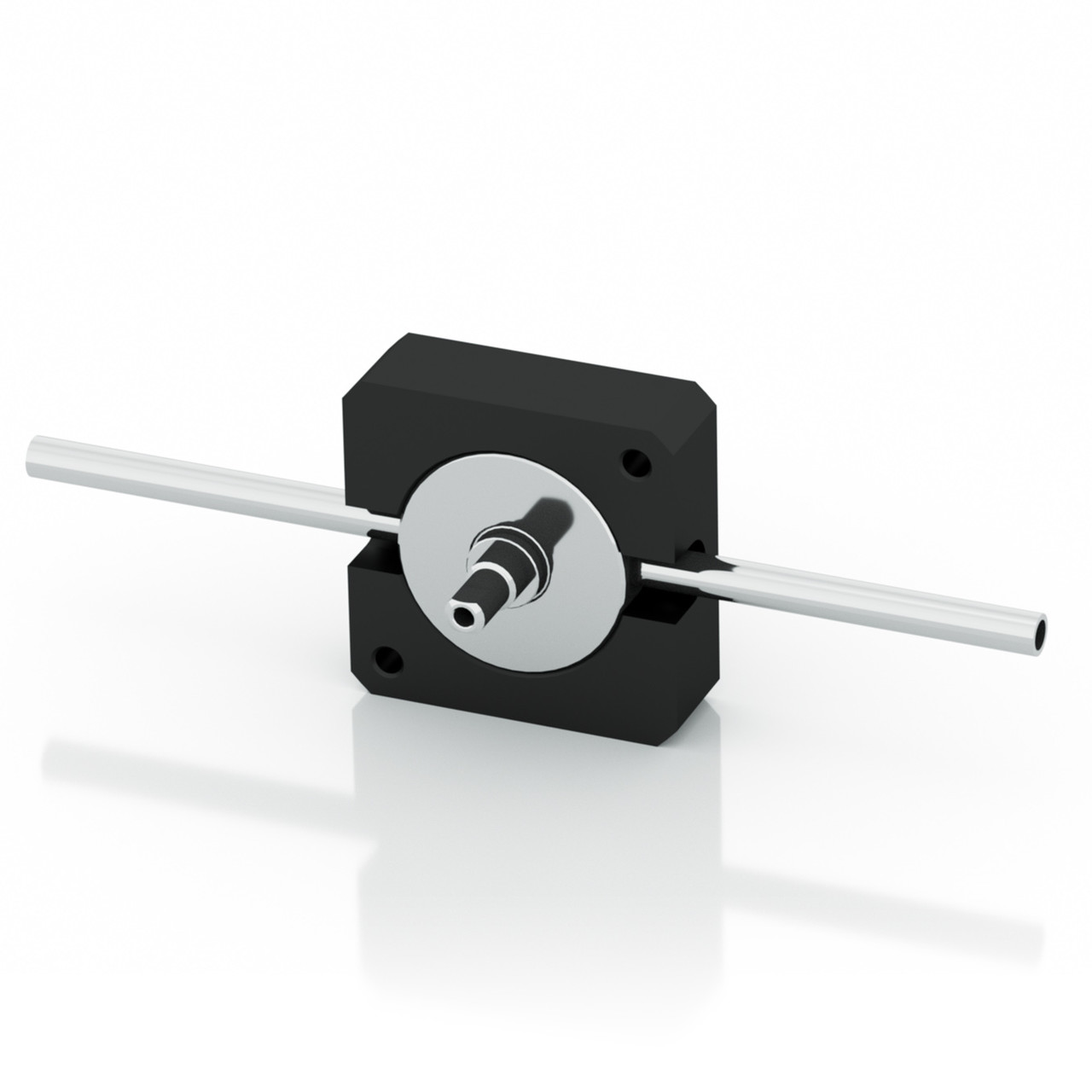

This stainless steel preparative UV flow cell with fiber optic connectors is distinguished by its robust and long-life design. The flow cell can be easily dismantled allowing optical components to be cleaned and replaced. Fiber optic cables offer the possibility to separate the flow cell spatially from the detector and thus provides enhanced security for hazardous, explosive or toxic work processes. This flow cell is compatible with the following KNAUER fiber optic version detectors: AZURA UVD 2.1S, UVD 2.1L, DAD 6.1L, DAD 2.1L, MWD 2.1L and Smartline 2520 and 2600.

Technical Data

Flow cell

Flow cell type Preparative UV flow cell
Biocompatible No
Fiber optics version Yes
Capillary connection 1/4” (straight connections)
Wetted materials Stainless steel / quartz (SUPRASIL) / PTFE
Path length 0.5 / 1.25 / 2 mm
Flow cell volume 1.7 / 4.3 / 6.8 µl
Maximum flow rate 10000 ml/min
Maximum pressure 200 bar
