Dual Lamp Stand Alone Multi Wavelength UV Detector for Liquid Chromatography and Process Technology

Product No:

ADJ11

190-750nm, variable single wavelength UV/VIS detector

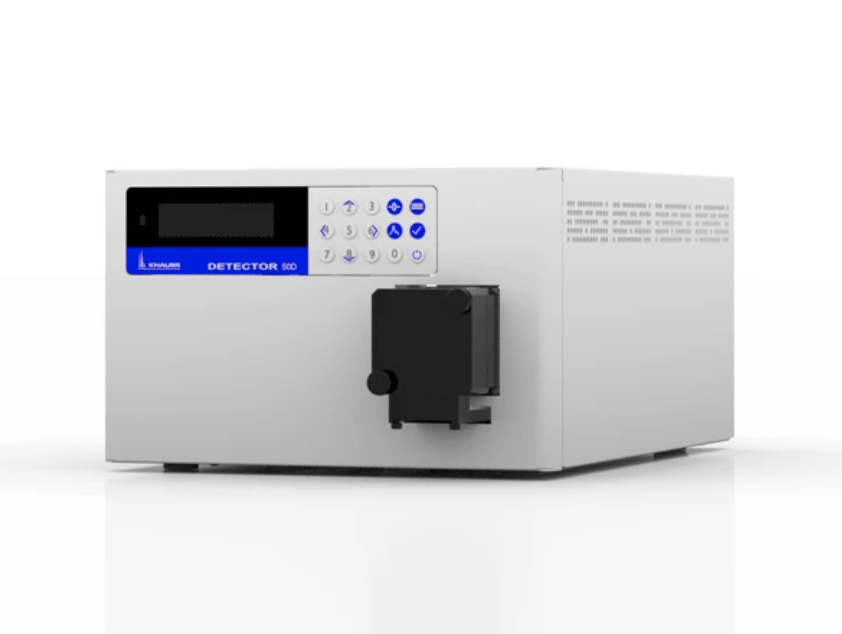

The BlueShadow 50D offers high sensitivity and baseline stability for HPLC applications including fast LC methods. With its high speed scanning design, up to four different wavelengths can be monitored simultaneously while acquiring spectral data from 190 to 900 nm. Its remarkable values for noise, drift, and linearity are achieved through smart optical bench technology and the use of optimized components. The detector comes with an installed deuterium lamp  and an installed halogen lamp which are covering a wavelength range from 190 to 900 nm. This detector can be controlled with OpenLab® EZChrom Edition, ClarityChrom® software, as well as via the integrated display (stand-alone operation), via LAN, via RS-232, or through analog input/output. Due to a smart design the flow cell is easily accessible and can be changed very quickly. A wide range of flow cells is available for practically any LC application, including micro flow cells for flow rates up to 10 μl/min and flow cells for preparative HPLC up to 10 l/min.

Technical Data

Detection

Detector type Variable multiwavelength detector
Detection channels 4
Light source Deuterium (D2) lamp and halogen lamp with integrated GLP chip
Wavelength range 190 – 900 nm
Spectral bandwidth 6 nm at Hα line (FWHM)
Wavelength accuracy ± 1.5 nm (verification with integrated holmium oxide filter)
Wavelength precision 0.4 nm (ASTM E275-93)
Noise ± 7.5 µAU at 254 nm (ASTM E1657-98)
Drift 200 µAU/h at 254 nm (ASTM E1657-98)
Linearity > 2.8 AU at 270 nm (ASTM E1657-98)
Maximum data rate 50 Hz (LAN) 1 channel/20 Hz (Analog) 1 channel/10 Hz (RS–232) 1 channel
Flow cell Not included
Time constants 0.1 / 0.2 / 0.5 / 1.0 / 2.0 / 5.0 / 10.0 s
Integration time Automatic

Communication

Inputs Error (IN), Start (IN), Autozero, 0 – 10 V Analog IN
Outputs Events 1 – 3, + 5 V, 24 V Value
Analog outputs 2 x 0 – 5 V scalable, 20 bit, offset adjustable
Control Digital: LAN-DHCP, RS-232, remote connector/Analog: wavelength control/Manual: keypad
Programming Timed: wavelengths, events, fraction valve, links, wake up (program, link); /9 programs, 50 program lines

Technical parameters

GLP Detailed report including lamp recognition, operating hours, lamp(s) operating hours, /step motor operating hours, number of lamp ignitions
Display Matrix display with keypad
Ambient conditions Temperature range: 4 – 40 °C; 39.2 – 104 °F, Humidity: below 90 % noncondensing

General

Power supply 100 – 240 V, 50 – 60 Hz, 75 W
Dimensions 242 x 169 x 399 mm (W x H x D)
Weight 5.3 kg
