AZURA Prep Pilot LC 250 HPG

Product No:

744203110

Binary high pressure gradient system with max. flow rate of 250 ml/min

SKU: 744203110 Category:

Binary high pressure gradient system with max. flow rate of 250 ml/min

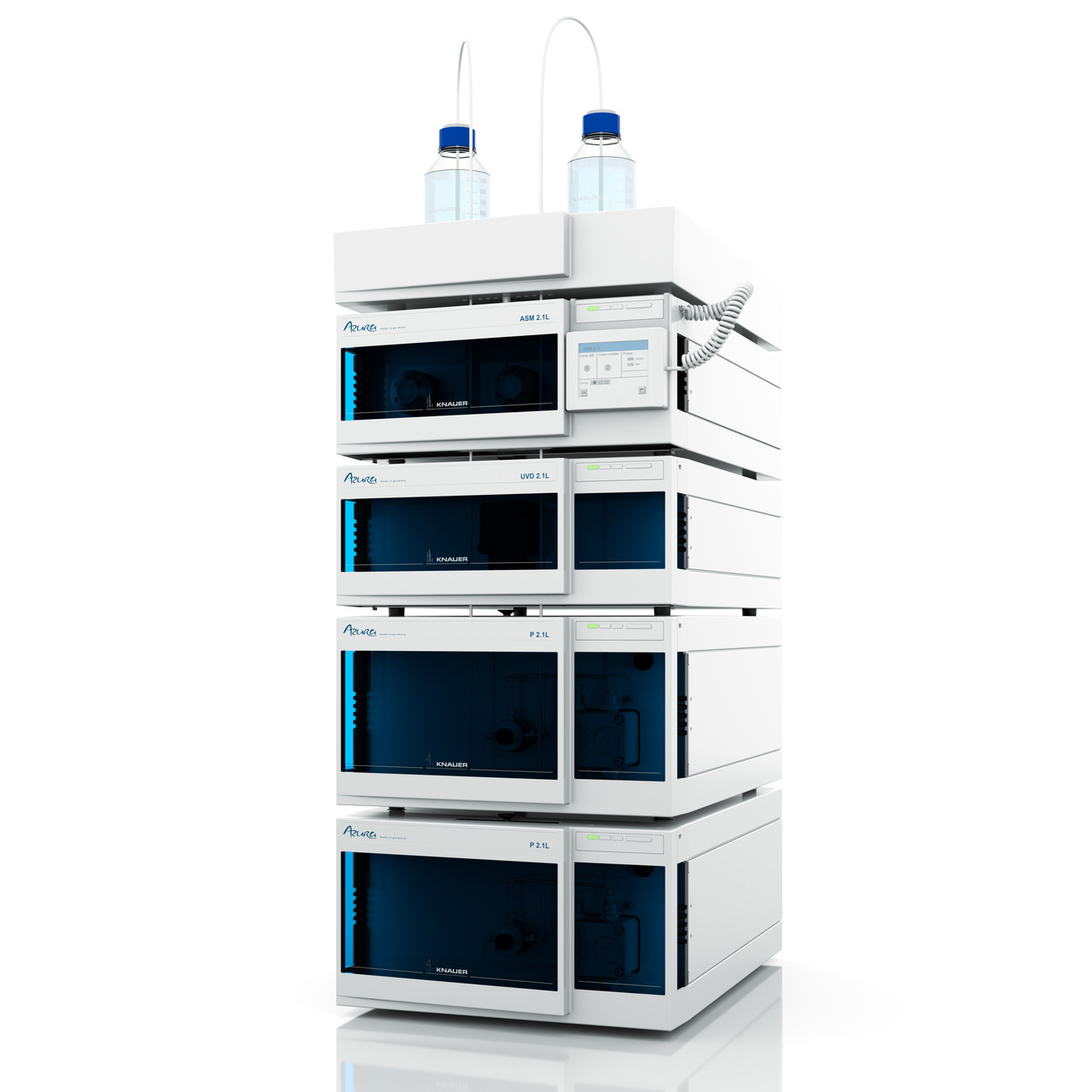

The AZURA Pilot Prep LC 250 HPG system is a complete binary high pressure gradient (HPG) HPLC system for the purification of samples in the laboratory scale. It is designed and optimized for the purification of milligram to gram samples. This system proposal consists of two preparative HPLC pumps, a UV/VIS detector and a freely customizable combination module. The AZURA P 2.1L pump covers a wide flow rate range and pressure capabilities. In the current setup, it supports max. pressures up to 225 bar at flow rates up to 100 ml/min (200 bar from 150 – 250 ml/min). The integrated automatic recognition of the pump head with RFID technology allows fast adaptions of the pump for various applications. The HPG setup enables the precise formation of binary gradients. Besides, ternary and quaternary gradients are accessible by integration of additional preparative pumps. The AZURA UVD 2.1L represents a UV/VIS detector with a variable single wavelength for the detection of fast eluting peaks. The system is completed by an AZURA assistant ASM 2.1L for preparative HPLC. The assistant module can be customized to individual requirements. For example, to enable automatic injection and fraction collection, the assistant module contains three integrated modules:

  • Large sample volumes can be applied automatically via the integrated injection valve and feed pump.
  • The integrated fractionation valve enables sample fractionation without an additional fraction collector.
  • Under isocratic conditions, the consumption of solvent can be reduced by the use of solvent recycling at high flow rates. Peak recycling allows improving the resolution of a pair of closely eluting solutes (e.g., a pair of enantiomers) by automated repeated processing of the peaks.

The AZURA Preparative HPLC system comes with an eluent tray for safe storage of eluent bottles and an integrated leak management system with sensors. Columns (20 mm and 30 mm ID) can be attached with an optional AZURA mounting bracket at both sides of each AZURA element. A leak sensor and the capillary guidance as well as the optional Mobile Control with touch screen facilitate the safe and user friendly operation. Modern design with completely demountable fronts turn the system into a visual highlight.

Technical Data

System specification

System type Pilot
Max. flow rate 250 ml/min
Gradient hpg
Maximum delivery pressure [psi] 2900 psi
Maximum delivery pressure [bar] 200 bar
Maximum delivery pressure [MPa] 20 MPa
Detector Variable single wavelength detection UV/VIS
Injection feed-pump
Fractionation multi-position valve
Software ClarityChrom
