AZURA HPLC Plus System

System Proposal

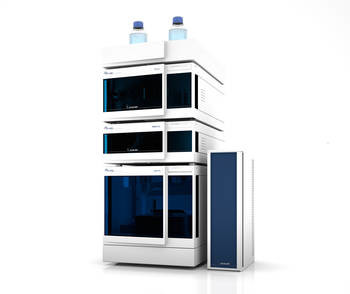

This system features a AZURA P 6.1L HPG/LPG pump, an Autosampler 6.1L, a column thermostat CT 2.1, a DAD 2.1L UV/VIS detector with 8-variable UV measuring channels from 190 – 750 nm, as well as a Tablet PC with AZURA Mobile Control. It is the standard system with a backpressure range of 700 bar. It perfectly fits the demanding needs of a method development system, as well as the robust fitness of a routine analysis machine.

The P6.1L with a HPG configuration features a solvent selection valve to set up to 4 solvents to the system of which two can be blended simultaneously. The internal degassing unit will prevent air bubbles in the system. Every P 6.1L comes with an attached mixing chamber, which can be changed to a larger volume depending on the applications needs.

The DAD 2.1L features a novel light path and flow cell architecture with improved handling and excellent performance. The frontal lamp and cell change ensures easy and secure maintenance. The temperature controlled optical bench minimizes signal drift. The wide flow cell selection allows the DAD 2.1L to be easily adapted to your needs.

The Autosampler 6.1L can inject 0.1 – 5000 µl to have a large flexibility. Using standard vials or two microtiter plates will give you a maximum sample capacity of up to 768 samples or 108 vials.

The AZURA CT 2.1 is the new price attractive basic column thermostat. It is suitable for column thermostatization above and below room temperature. The instrument operates with a microprocessor controlled Peltier element for exact temperature settings.

Key Features

• Complete gradient analytical HPLC system
• Variable multichannel UV/VIS Detector (or DAD)
• Pump unit with pressure sensor for a low pulsation eluent supply (max. 700 bar)
• AZURA Mobile Control unit allows direct control of all integrated modules
• Complete software package ClarityChrom®
• Leakage protection
• PC with Monitor
• Tubing scheme
• Application note
