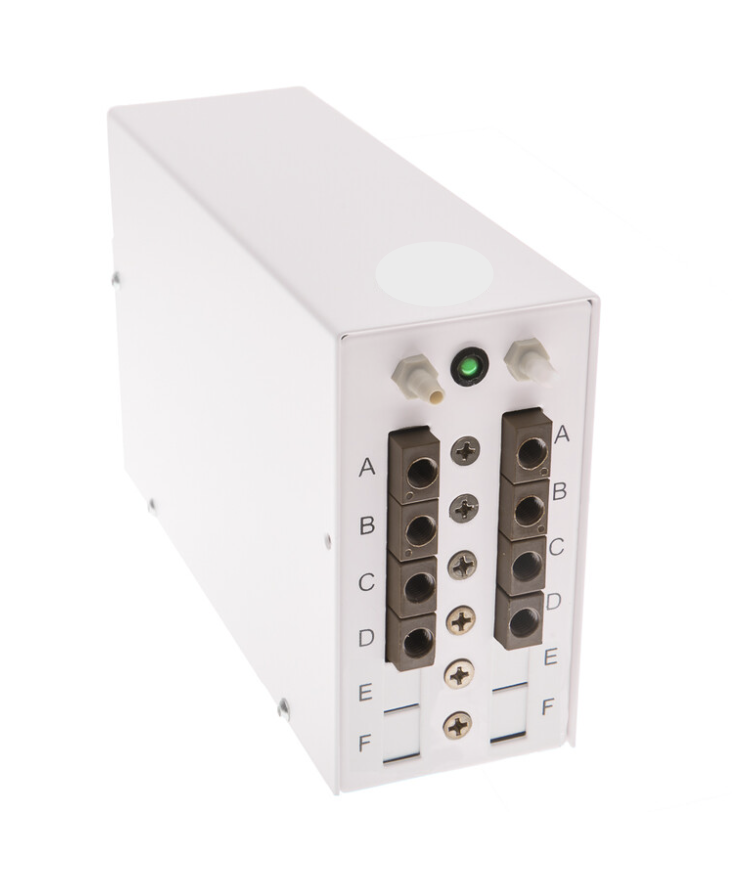

Analytical 4 channel degasser

Product No:

ICBCD-04

SKU: ICBCD-04 Category:

Degasser module

Degasser channels 4
Max. flow rate/channel 10 ml/min
Recommended flow rate/channel 2 ml/min
Degassing method Gas permeation through a fluoropolymer tube membrane
Degassing chamber volume 285 µl
Wetted materials Systec AF TM, PPS, PEEK, PTFE
Maximum pressure stability 70 psi
Display Single bi-color LED



Technical Parameters

Conformity 1/4″-28 UNF Female Port

General

Power supply 100-240V AC 1A 50 to 60hz
Dimensions 167 x 107 x 56 mm
General

Power supply 100-240V AC 1A 50 to 60hz
Dimensions 167 x 107 x 56 mm
