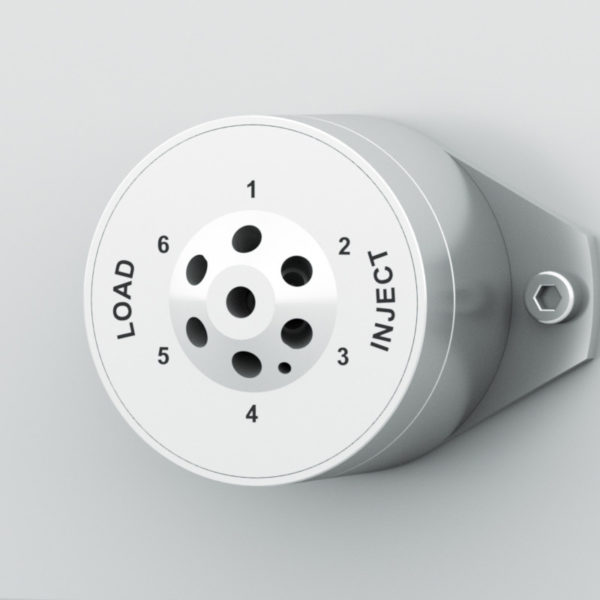

6-Port/3-channel valve head

Product No:

A1372

PEEK, PPS, 1/8″, 150 bar

SKU: A1372 Category:

Valve with 6 port 2 position

Valves are ubiquitous in all liquid chromatography applications. They act like a switch and can control the flow path of the chromatography system in various ways. Therefore, valves are indispensable for eluent selection, sample injection, column selection, and fractionation as well as any switching task. KNAUER valves are designed for a wide range of chromatographic and dosing applications. Flexibility is provided by choice of different materials and sizes as well as drivers for various software packages. Valves are driven either manually or automatically through a valve drive.
All valves include suitable fittings. Additionally, valves with two positions include an injection port for injection and the 12-port and 16-port valve include tubing for fractionation.

Technical Data

Valve details

Function Column selection, Injection
Capillary connection 1/8″
Bore size 1.2 mm
Thread M8
Max. pressure [bar] 150 bar
Max. pressure [MPa] 15 MPa
Max. pressure [psi] 2175 psi
Maximum flow rate 500 ml/min
Operation mode Automated Stand-alone
Port number 6
Positions 2
Stator material PEEK
Rotor material PPS
Valve Drive not included

General

Dimensions Valve diameter: 47.5 mm
Weight 0.3 kg
Ambient conditions Temperature range: 4–40 °C; 39.2–104 °F; below 90 % humidity (non condensing)
